1、Soft surface, although the surface was printed the wood、marble and the cloth texture on the surface, it still could keep the surface soft.
2、Having the realism and the third-dimension as the real wood.
3、Having a certain degree of the cleanliness feature and the decorative feature.
4、Having certain degree of heat resistance, chemical resistance, and corrosion resistance.
5、Having certain degree of solidity on the surface.

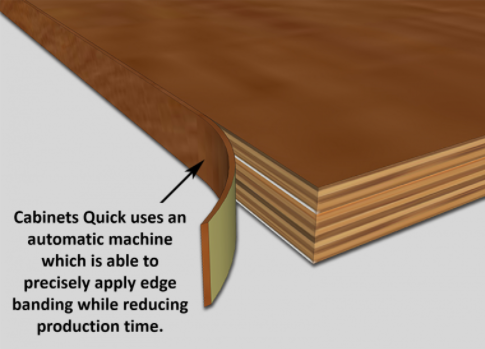

The main function of the edge banding.

1、Banding the panel section to avoid the damage caused by some negative elements in the environment and the using process (pay more attention for the water).

2、Avoid the volatilization of the formaldehyde hiding in the panel to achieve the function of decorative feature.

About the calcium carbonate powder (usually be called lime powder)

Generally, there is some calcium carbonate in the PVC edge banding. And the content of the calcium carbonate powder should be kept in an appropriate quantity. If it too high which will make the structure of the PVC loose and affect the quality of the PVC edge banding heavily, causing a lot of problem, such as

1、Crease in white.

It means that the edge banding is flexed in arc-shaped which will caused the white crease. Once the white crease caused and it will not disappear, even through the edge banding is straightened again.

2、Edge curl

It means that handling the detail about the edge banding will cause a gap, producing the edge curl. There is no doubt that edge curl also caused by other situation, take a example, the different of the speed and the order of adding the hot melt adhesive and raw material will not make the edge banding attaching on the panel tightly which lead to the edge curl appearing。

3、Poor appearance with the dim glossiness

After the edge banding is cut in detail and polished. The glossiness of is will become dim and fuzzy, leading to the appearance poor. At the present market, a lot of manufactures will add more calcium carbonate powder. Sometimes the content of the calcium carbonate powder will even over 60%. And the reason for why dose the different type of edge banding with the same brand sell in different price, the key reason is the content of the calcium carbonate powder.

4、Cracking

Due to the high content of calcium carbonate, the edge band has no toughness, and the internal structure will be loose. If it is affected by external force slightly, it will crack, especially in the transportation with low temperature.

5、The problems in surface printing

There are two technologies for surface printing: printing and heat transfer film. The surface of heat transfer film is glossy, and the product looks bright and layered. Then due to its high cost, slow transfer speed and inconvenient color assortment with the panel, it has been replaced by printing. However, some low quality PVC edge banding is added in excess calcium carbonate powder, which makes the problem about discoloration, whatever which printing technology we choose, the discoloration still can not be handled，so the technology of heat transfer film also be choose some time.

Products advantages：

A wide range of vivid colors and designs，pure materials，nofilling

Apllication：

For covering and surface decoration of panel funiture edge

How to use：

Use on semi-automatic or fully automatic edge banding machines with hot-melt adhesives in the 140-220 degree range.

Production Process：

Base extrusion-primer coating-surface printing-packaging

Features：

This products is easily decomposed by the environment and is the edge banding product with the best environment protection coefficient on the market.The surface of the product is fine and smooth with good color，and has good trimming gloss.

ABS Edge Banding

3d acrylic edge

Product advantages：

The bottom printing is used to connect with the surface material naturally,and can achieve good visual 3D effect for furniture products.

Application:

For covering and surface decoration of panel furniture edge.

How to use:

Use on semi-automatic or fully automatic edge banding machines with hot-melt adhesives in the 140-220 degree range.

Production process:

Extrusion substrate–back side hot stamping–back side printing–primer coating–packing.

Features:

This product is based on PVC and has good transparency;The product has good flame retardancy and is safe and reliable;It’s your first choice for cabinets,bathroom furniture,wardrobes and doors

PVC edge banding is most popular when using Pressure Laminated and Melamine Cabinets. With modern European cabinetry on the rise, it is not uncommon to see cabinets with glossy or colorful finishes. PVC (polyvinyl chloride) Edge banding is made from thermoplastic resin and is known to be both flexible and durable. Pigments and other materials are added to create seemingly endless options of edge banding colors, textures and woodgrains. You are almost guaranteed to find a match once your laminate is chosen!

Veneer Edge banding is made from actual slices of wood that have been pre-sanded and layered together. Veneer Edge banding is available in both finished and unfinished depending on whether a plywood is going to be painted or stained. This edge banding is most commonly used to make a board seem like a solid piece of wood (but at a fraction of the price).

Edge banding is also available in a variety of thicknesses. For cabinets in low-use areas, such as a home office, 0.5mm edge banding is used in order to be cost effective while still being durable. For high-use areas, like kitchens and bathrooms, 1mm thick edge banding is recommended to better protect your cabinets from frequent use. 3mm edge banding is used for commercial jobs, where strength and longevity are a must.

While most people like to make their edge banding match the finish it’s being applied to, some like to mix it up by using contrasting materials.

The priority choice for edge banding of Europe and US furniture.

ABS EDGE BANDING is made of plastic alloy polymerized by acrylonitrile,Butadiene and Styrene.It is environmental friendly,Solid and with excellent endurance of high and cryogenic temperature. Moving forward it will gradually replace traditional materials to become the mainstream of decorative material for mid-high class furniture.

ABS edge banding

CANTO DE PVC

Los Cantos de PVC presentan resistencia a la rotura, al desgaste y al impacto. Especiales para mobiliario escolar, del hogar (muebles de cocina y closets), de oficina, hospitales y comercio.

Los cantos de PVC son cantos termoplásticos elaborados a partir de un plástico denominado Policlorato de Vinilo. PVC es un material denso y con gran estabilidad dimensional que presenta una gran resistencia a la abrasión, a la luz UV, a los productos químicos y al impacto. Una característica de los cantos PVC es que no son combustibles, o sea no alimentan la combustión y son 100% reciclables.

• – Cantos para muebles de cocina
• – Equipamiento de oficinas
• – Tableros de dibujo

• – Tapas para mesas
• – Cantos de pvc para madera
• – Cantos de pvc para muebles del hogar
• – Resistente a los impactos y golpes

Cantos de PVC – Ventajas

Comparando cantos de PVC ABS Vs Melamina

We are dealing with assembling and providing a wide combination of Edge Banding Tape. Truth be told, we are a trusted setup  Edge Band Tape Manufacturer from China. These PVC Edge Banding Tapes are requested in shopping centers, private houses, and houses for beautifying and covering fine edges of furniture. Our whole range is prepared by using the highest quality materials in the market. This PVC Edge Banding Tape can be effectively benefited from our significant customers at market driving cost.

We are lucky enough to have a moderate edge banding tape, and we are at the opportune spot. We offer these polished PVC Edge Band Tapes with confirmation of highlights, for example, hostile to maturing, solid pressure, cold safe and natural insurance. The items are pressed in standard container boxes, which are strong and fit for sailing, guaranteeing the best nature of the PVC Edge Tapes at unsurpassed. The conveyance time relies upon the customer’s organization and area. The normal time of conveying the Edge Band Tape is coming to the conclusion of his request.

We are a standout among the most famous Band Edge Tape Manufacturer. We at China, offer a wide assortment of Pvc Edge Banding Tapes. These PVC Edge Banding Tapes are produced by utilizing brilliant crude material. Our PVC Edge Banding Tapes are exceptionally used to make the fringe or present-day configuration design. YOUNG Pvc Edge Banding Tapes are exceptionally adjustable. We give distinctive hues and examples to our customers.

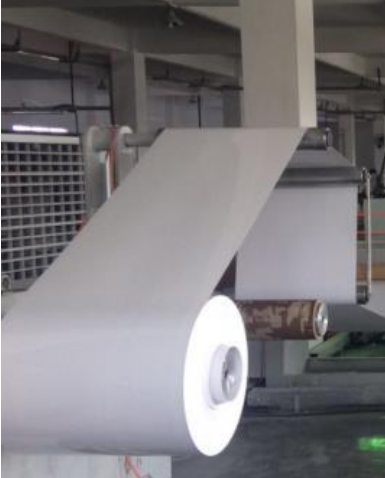

Edge banding Jumbo rolls can be slit to any required width up to 630mm. They are available for purchase in quantities as little as single-roll.

If the color and thickness you need is in our Jumbo roll program, you will no longer need to order large production minimums. YOUNG edge banding can be produced in Jumbo rolls, giving you the  flexibility and available required . We are proud to offer very attractive pricing on this new, convenient solution.

630 jumbo roll

Why choose PVC?
Polyvinyl chloride is the third most common plastic polymer in the world.
Price: PVC is one of the cheapest materials in the edge banding industry.
Durability: Another advantage is that PVC is more resistant to ultraviolet radiation and solvents than ABS.
Solvent safety: Because PVC can resist even the strongest solvents, it is easier to clean after the application process.
Size versatility: Most manufacturers can manufacture PVC in a wider range of width and thickness than ABS, making it easier to find the ideal size.

Why choose ABS?
ABS is an acronym for the rather cumbersome term Acrylonitrile Butadiene Styrene. Although related to polystyrene, it is stronger, more flexible, and more similar to plastic.
User-friendliness: ABS is easier to use than PVC. It is often easier to apply and trim, saving time and frustration.
Fire resistance: Both materials have fire resistance, but ABS has lower flammability. When PVC burns, it will release harmful gases and should not be used near extreme heat sources.
Recyclable: Although both products can be recycled, ABS is the easier of the two to process.
Application versatility: Because there is no harmful gas when it burns, ABS can be applied with laser. PVC can only be used for PVC-friendly equipment.

Which one is better?
Although comparisons between products inevitably make people wonder which is better, there is no clear winner here. If you prefer laser applications, you should only use ABS. On the other hand, PVC may be the only material in the size required for your project.
